Carbine (7.62mm Standard Rifle Ammunition)

Section III

No. 4

A rifle can be made from water or gas pipe and fittings. Standard cartridges are used for ammunition.

38 1 Carbine (7.62mm Standard Rifle Ammunition)

MATERIAL REQUIRED:

  • Wood approximately 2 in. x 4 in. x 30 in.
  • 1/4 in. nominal size iron water or gas pipe 20 In. long threaded at one end.
  • 3/8 In. to 1/4 in. reducer
  • 3/8 In. x 1-1/2 in. threaded pipe
  • 3/8 in. pipe coupling
  • Metal strap approximately 1/2 in. x 1/16 in. x 4 In.
  • Twine, heavy (100 yards approx.)
  • 3 wood screws and screwdriver
  • Flat head nail about 1 in. long
  • Hand drill
  • Saw or knife
  • File
  • Pipe wrench
  • Shellac or lacquer
  • Elastic bands
  • Solid 3/8 In. pipe plug

PROCEDURE:

1. Inspect pipe and fittings carefully.

a. Be sure that there are no cracks or flaws.

b. Check Inside diameter of pipe. A 7. 62 mm projectile should fit into 3/8 in. pipe.

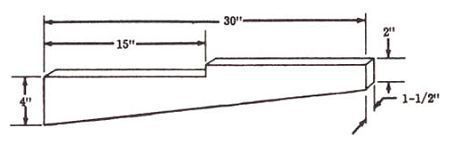

2. Cut stock from wood using saw or knife.

38 2 Carbine (7.62mm Standard Rifle Ammunition)

3. Cut a 1/4 In. deep “V” groove in top of the stock.

38 3 Carbine (7.62mm Standard Rifle Ammunition)

4. Fabricate rifle barrel from pipe,

a.File or drill inside diameter of threaded end of 20 in. pipe for about 1/4 in. so neck of cartridge case will fit in.

b.Screw reducer onto threaded pipe using pipe wrench.

c.Screw short threaded pipe into reducer.

d. Turn 3/8 pipe coupling onto threaded pipe using pipe wrench. All fittings should be as tight as possible. Do not split fittings.

38 4 Carbine (7.62mm Standard Rifle Ammunition)

5. Coat pipe and “V” groove of stock with shellac or lacquer. While still wet, place pipe in “V” groove and wrap pipe and stock together using two layers of twine. Coat twine with shellac or lacquer after each layer.

6. Drill a hole through center of pipe plug large enough for nail to pass through.

38 5 Carbine (7.62mm Standard Rifle Ammunition)

7. File threaded end of plug flat.

38 6 Carbine (7.62mm Standard Rifle Ammunition)

8. Push nail through plug and out off rounded 1/32 In. (2 mm) past the plug.

9. Screw plug Into coupling.

38 7 Carbine (7.62mm Standard Rifle Ammunition)

10. Bend 4 In. metal strap into “L” shape and drill hole for wood screw. Notch metal strap on the long side 1/2 in. from bend.

38 8 Carbine (7.62mm Standard Rifle Ammunition) 11. Position metal strap on stock so that top will hit the head of the nail. Attach to stock with wood screw.

38 9 Carbine (7.62mm Standard Rifle Ammunition) 12. Place screw in each side of stock about 4 in. in front of metal strap. Pass elastic bands through notch in metal strap and attach to screw on each side of the stock.

38 10 Carbine (7.62mm Standard Rifle Ammunition)

CHECK - TEST FIRE RIFLE BEFORE HAND FIRING

1. Locate a barrier such as a stone wall or large tree which you can stand behind to test fire weapon.

2. Mount rifle solidly to a table or other rigid support at least ten feet in front of the barrier.

3. Attach a long cord to the firing strap on the rifle.

4. Holding the other end of the cord, go behind the barrier.

5. Pull the cord so that the firing strap is held back.

6. Release the cord to fire the rifle. (If the rifle does not fire, shorten the elastic bands or increase their number.)

IMPORTANT: Fire at least five rounds from behind a barrier and then re inspect the rifle before you attempt to shoulder fire it.

HOW TO OPERATE RIFLE:

1. To Load

a. Remove plug from coupling.

38 11 Carbine (7.62mm Standard Rifle Ammunition)

b. Put cartridge into pipe.

38 12 Carbine (7.62mm Standard Rifle Ammunition) c. Screw plug hand-tight Into coupling.

2. To Fire

38 13 Carbine (7.62mm Standard Rifle Ammunition)

a. Pull strap back and hold with thumb.

b. Release strap.

3. To Unload Gun

a. Take plug out of coupling.

b. Drive out used case using stick or twig.
